Product

Home / Products / Gas Scooter / H2 Sport

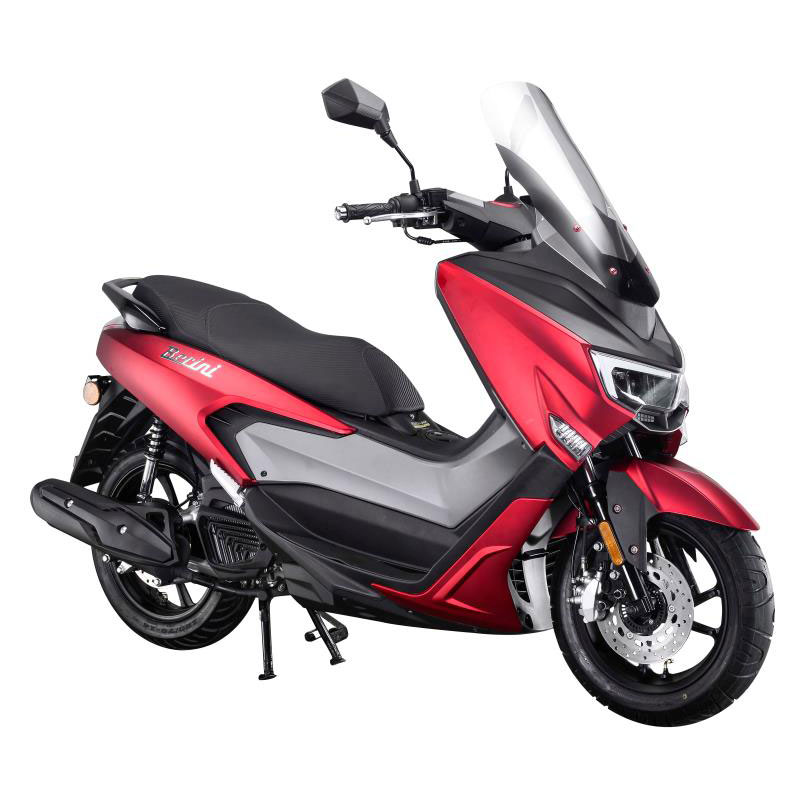

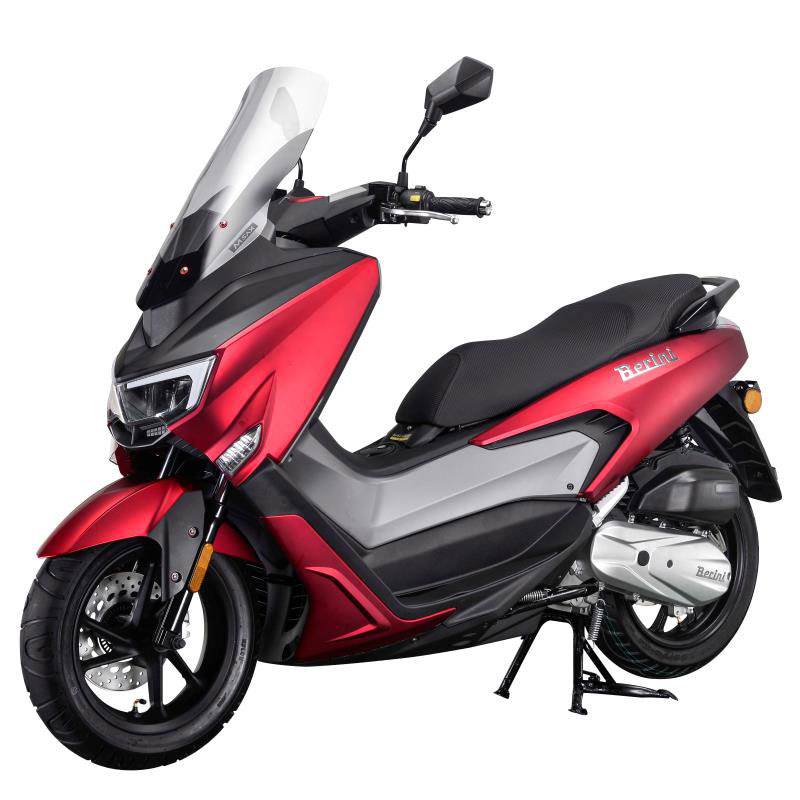

H2 Sport
3+
Views: 16,018
Detail image:
Specifications
 H2 Sport 125 Euro IV H2 Sport 125 Euro VH2 Sport 150CC
Dimension 1910*810*1095mm1910*810*1095mm1910*810*1095mm
Wheelbase1385MM1385MM1385MM
Minimum Ground clearance142mm   142mm   142mm
Unladen weight138 kg138 kg138 kg
Load capacity150 kg150 kg150 kg
Usable tank volume8±0.5L8±0.5L8±0.5L
Container capacity46PCS/40HQ or 16PCS/20FT 46PCS/40HQ or16PCS/20FT 46PCS/40HQ or16PCS/20FT
Front suspensionhydraulic shockhydraulic shockhydraulic shock
Rear suspensionMono shockMono  shockMono  shock
Front brakeDiskDiskDisk
Front rim typealuminum alloyaluminum alloyaluminum alloy
Max Speed 100KM/H 100KM/H 110KM/H
Rear brakeDiskDiskDisk
Rear rim typealuminum alloyaluminum alloyaluminum alloy
Front tyre80/90-1480/90-1480/90-14
Rear tyre90/90-1490/90-1490/90-14
 125CC EFI 125CC  EFI 150CC  EFI
Engine model1P52QMI1P52QMI1P57QMJ
Engine type125CC water cooled single cylinder four strocke SOHC EFI 125CC water cooled single cylinder four strocke SOHC EFI 150CC water cooled single cylinder four strocke SOHC EFI
Displacement124.8CC124.8CC149.32CC
Bore x stroke52.4*57.9 mm52.4*57.9 mm57.3*57.9 mm
Compression ratio11.0:111.0:110.6.0:1
Max power8.3kW/8500rpm8.3kW/8500rpm10.8kW/8500rpm
Max torque13.6N.m/6000rpm13.6N.m/6000rpm14.55N.m/6000rpm
Idle Speed1600 r/min1600 r/min1600 r/min
Economical oil consumption(L/100km)2.3L2.6L2.6L
Fuel supplyEFIEFIEFI
IgnitionECUECUECU
Start Mode ACG Silent Start ACG Silent Start ACG Silent Start
Drive systemBelt driveBelt driveBelt drive
Product Description

Our advantage



1. Advanced and thorough basis testing equipments and devices for guarantee high QC and D&R high standard.

2. 20 years manufacturing experiences and 15 years market and service experience in European and USA market .

3. Top design patent models cover all type from gas scooters to sport motorcycle.

4. Mould injections facility,Engine producing center,Cable plant ,all weather patner fame factory all those core parts subbranch factory provide the whole process control systerm and make a high quality standard products.

5. The cohesive coroperate culture and market&customer mind create the strong power and embrace the possible change for the company processive development.



FAQ



1. Are you a factory or a trading company?

We are of course a factory?which have 20 years experience of gas scooter and motorcycle manufacturer, our company is located in Luqiao district, Taizhou city, Zhejiang?province. Jiajue is near the Luqiao Airport and Wenling Railway Station, the distance from airport to our company is about 7.5km, and it usually takes 30 minutes by car from Wenling Railway Station to here.



2. What is your MOQ?

For scooter, the MOQ is 20PCS/20FT, for motorcycle, the MOQ is 1PCS.



3. Do you make OEMproduct?

Yes,?we can make as per your reasonable requirement, and we can also provide our design for your reference.



4. Is?the?priceCompetitive?

As a manufacturer with heavy experience, ,we have lower production cost, so the price is really reasonable and competitive. It indeed deserves because of our stable quality and good service.



5. How to place the order?

You can chat with us on line or send us the inquiry(Also?you?can?directly?contact with us by?E-mail?/?Whats?App?/ Skype), we will reply you as soon as possible.



6. What is the delivery time?

It?will depend on your design and quantity, usually we can finish your order within 30?days after we get the deposit.



7. Will?you?offer?sample?

It is usually available for motor spare parts, and as for the whole motorcycle and scooter, It depends on the detailed situation.
